Access URL

Sandbox Environment

Public stream: wss://stream-pro.sim.hashkeydev.com/quote/ws/v1
Private stream: wss://stream-pro.sim.hashkeydev.com/api/v1/ws/{listenKey}

Production Environment

Public stream: wss://stream-pro.hashkey.com/quote/ws/v1
Private stream: wss://stream-pro.hashkey.com/api/v1/ws/{listenKey}

Heartbeat check

When a user's websocket client application successfully connects to HashKey websocket server, the client is recommended to initiate a periodic heartbeat message (ping message) containing the sessionID every 10 seconds, which is used to keep alive the connection

Ping message format is as follows:

// From Sent by the user
{
    "ping":1691473241907
}

When the user receives the above Ping message from the websocket Client application, it will return a Pong message containing the current timestamp.

The Pong message format is as follows:

// From Websocket Server
{
    "pong":1691473283965
}

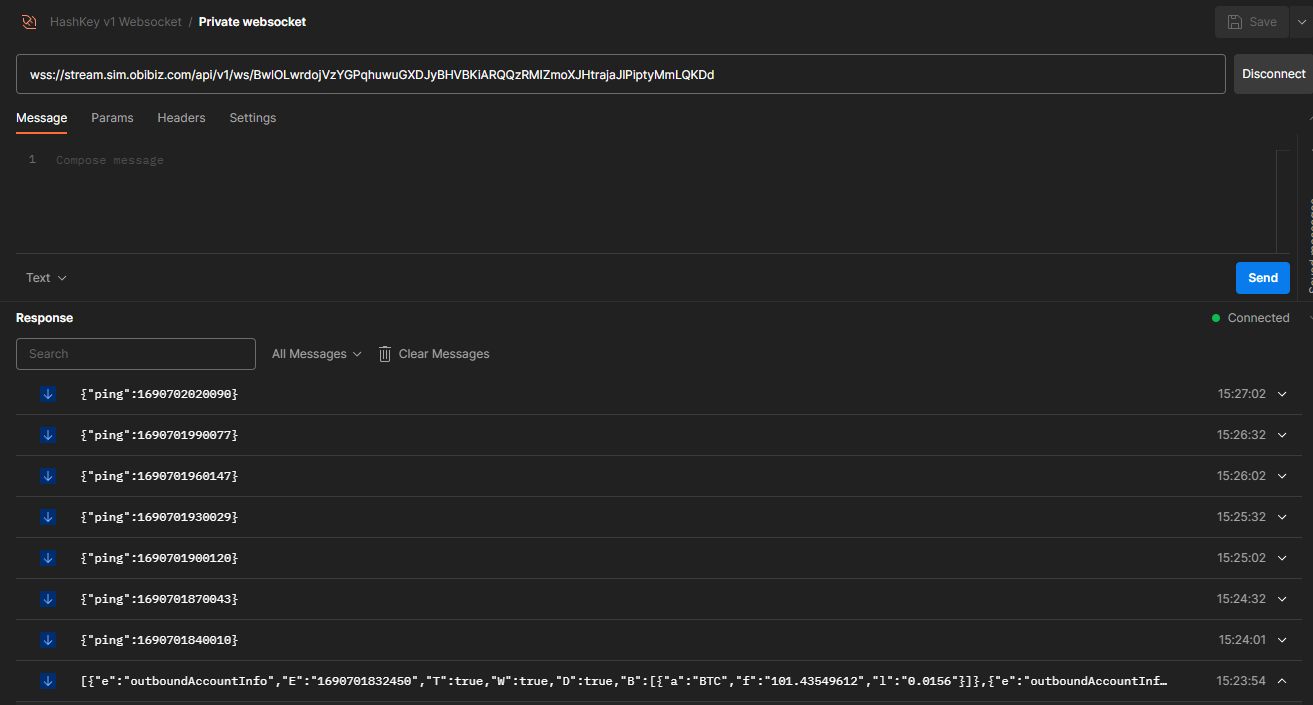

Automatic disconnection mechanism (Only for Private Stream)

If the websocket server sends two Ping messages in a row, but neither Pong is returned, the websocket link will be automatically disconnected

// From Websocket Server
{
    "ping":1691473241907
}

Websocket sample

import hashlib
import hmac
import json
import time
import websocket
import logging
import threading

########################################################################################################################
# Test Websocket API

# Copyright: Hashkey Trading 2023
########################################################################################################################


class WebSocketClient:
    def __init__(self):
        self._logger = logging.getLogger(__name__)
        self._ws = None
        self._ping_thread = None

    def _on_message(self, ws, message):
        self._logger.info(f"Received message: {message}")
        data = json.loads(message)
        if "pong" in data:
            # Received a pong message from the server
            self._logger.info("Received pong message")
        # Handle the received market data here

    def _on_error(self, ws, error):
        self._logger.error(f"WebSocket error: {error}")

    def _on_close(self, ws):
        self._logger.info("Connection closed")

    def _on_open(self, ws):
        self._logger.info("Subscribe topic")
        sub = {
            "symbol": "BTCUSD",
            "topic": "trade",
            "event": "sub",
            "params": {
                "binary": False
            },
            "id": 1
        }
        ws.send(json.dumps(sub))

        # Start the ping thread after connecting
        self._start_ping_thread()


    def _start_ping_thread(self):
        def send_ping():
            while self._ws:
                ping_message = {
                    "ping": int(time.time() * 1000)  # Send a timestamp as the ping message
                }
                self._ws.send(json.dumps(ping_message))
                self._logger.info(f"Send ping message: {ping_message}")
                time.sleep(5)

        self._ping_thread = threading.Thread(target=send_ping)
        self._ping_thread.daemon = True
        self._ping_thread.start()

    def unsubscribe(self):
        if self._ws:
            self._logger.info("Unsubscribe topic")
            unsub = {
                "symbol": "BTCUSD",
                "topic": "trade",
                "event": "cancel",
                "params": {
                    "binary": False
                },
                "id": 1
            }
            self._ws.send(json.dumps(unsub))

    def connect(self):
        base_url = 'wss://stream-pro.sim.hashkeydev.com'
        endpoint = 'quote/ws/v1'
        stream_url = f"{base_url}/{endpoint}"
        self._logger.info(stream_url)
        self._logger.info(f"Connecting to {stream_url}")

        self._ws = websocket.WebSocketApp(stream_url,
                                          on_message=self._on_message,
                                          on_error=self._on_error,
                                          on_close=self._on_close)
        self._ws.on_open = self._on_open

        self._ws.run_forever()

if __name__ == '__main__':
    logging.basicConfig(level=logging.INFO)

    client = WebSocketClient()
    client.connect()

import hashlib
import hmac
import json
import time
import websocket
import logging
import threading
import requests
import datetime

########################################################################################################################
# Test Websocket API

# Copyright: Hashkey Trading 2023
########################################################################################################################


class WebSocketClient:
    def __init__(self, user_key, user_secret, subed_topic=[]):
        self.user_key = user_key
        self.user_secret = user_secret
        self.subed_topic = subed_topic
        self.listen_key = None
        self._logger = logging.getLogger(__name__)
        self._ws = None
        self._ping_thread = None
        self.last_listen_key_extend = time.time()

    def generate_listen_key(self):
        params = {
            'timestamp': int(time.time() * 1000),
        }
        api_headers = {
            'X-HK-APIKEY': self.user_key,
            'content-type': 'application/x-www-form-urlencoded;charset=UTF-8',
        }
        signature = self.create_hmac256_signature(secret_key=self.user_secret, params=params)
        params.update({
            'signature': signature,
        })
        response = requests.post(url=f"https://api-pro.sim.hashkeydev.com/api/v1/userDataStream", headers=api_headers, data=params)
        data = response.json()
        if 'listenKey' in data:
            self.listen_key = data['listenKey']
            self._logger.info(f"Generated listen key: {self.listen_key}")
        else:
            raise Exception("Failed to generate listen key")

    def extend_listenKey_timeLimit(self):
        params = {
            'timestamp': int(time.time() * 1000),
            'listenKey': self.listen_key,
        }
        api_headers = {
            'X-HK-APIKEY': self.user_key,
            'content-type': 'application/x-www-form-urlencoded;charset=UTF-8',
        }
        signature = self.create_hmac256_signature(secret_key=self.user_secret, params=params)
        params.update({
            'signature': signature,
        })
        response = requests.put(url=f"https://api-pro.sim.hashkeydev.com/api/v1/userDataStream", headers=api_headers, data=params)
        if response.status_code == 200:
            self._logger.info("Successfully extended listen key validity.")
        else:
            self._logger.error("Failed to extend listen key validity.")

    def create_hmac256_signature(self, secret_key, params, data=""):
        for k, v in params.items():
            data = data + str(k) + "=" + str(v) + "&"
        signature = hmac.new(secret_key.encode(), data[:-1].encode(), digestmod=hashlib.sha256).hexdigest()
        return signature

    def _on_message(self, ws, message):
        current_time = datetime.datetime.now().strftime("%Y-%m-%d %H:%M:%S.%f")
        self._logger.info(f"{current_time} - Received message: {message}")

        data = json.loads(message)
        if "pong" in data:
            self._logger.info("Received pong message")
        # Handle other messages here

    def _on_error(self, ws, error):
        self._logger.error(f"WebSocket error: {error}")

    def _on_close(self, ws):
        self._logger.info("Connection closed")

    def _on_open(self, ws):
        self._logger.info("Subscribing to topics")
        for topic in self.subed_topic:
            sub = {
                "symbol": "BTCUSD",
                "topic": topic,
                "event": "sub",
                "params": {
                    "limit": "100",
                    "binary": False
                },
                "id": 1
            }
            ws.send(json.dumps(sub))
        self._start_ping_thread()

    def _start_ping_thread(self):
        def send_ping():
            while self._ws:
                current_time = time.time()
                if current_time - self.last_listen_key_extend > 1800:  # Extend listen key every 30 minutes
                    self.extend_listenKey_timeLimit()
                    self.last_listen_key_extend = current_time

                ping_message = {"ping": int(time.time() * 1000)}
                self._ws.send(json.dumps(ping_message))
                self._logger.info(f"Sent ping message: {ping_message}")
                time.sleep(5)

        self._ping_thread = threading.Thread(target=send_ping)
        self._ping_thread.daemon = True
        self._ping_thread.start()

    def unsubscribe(self):
        if self._ws:
            self._logger.info("Unsubscribing from topics")
            for topic in self.subed_topic:
                unsub = {
                    "symbol": "BTCUSD",
                    "topic": topic,
                    "event": "cancel_all",
                    "params": {
                        "limit": "100",
                        "binary": False
                    },
                    "id": 1
                }
                self._ws.send(json.dumps(unsub))

    def connect(self):
        if not self.listen_key:
            self.generate_listen_key()

        base_url = 'wss://stream-pro.sim.hashkeydev.com'
        endpoint = f'api/v1/ws/{self.listen_key}'
        stream_url = f"{base_url}/{endpoint}"
        self._logger.info(f"Connecting to {stream_url}")

        self._ws = websocket.WebSocketApp(stream_url,
                                          on_message=self._on_message,
                                          on_error=self._on_error,
                                          on_close=self._on_close)
        self._ws.on_open = self._on_open

        self._ws.run_forever()

if __name__ == '__main__':
    logging.basicConfig(level=logging.INFO)
    user_key = "YOUR_USER_KEY"
    user_secret = "YOUR_USER_SECRET"
    subed_topics = ["trade"]
    client = WebSocketClient(user_key, user_secret, subed_topics)
    client.connect()

Public Stream

Kline_$interval

Update frequency: 300ms

Subscription request parameters

PARAMETER	TYPE	Req'd	Example values	DESCRIPTION
symbol	STRING	Y	BTCUSDT	Name of currency pair
topic	STRING	Y	kline_1m	Topic name, default: "kline"
event	STRING	Y	sub	Event type
params	STRING	Y	"binary": false	Parameter

Request Example:

sub = {
        "symbol": "BTCUSDT",
         "topic": "kline_1m",
         "event": "sub",
         "params": {
             "binary": False
         },
         "id": 1
}

Response content

PARAMETER	TYPE	Example values	DESCRIPTION
symbol	STRING	BTCUSDT	Currency pair ID
symbolName	STRING	BTCUSDT	Currency pair name
topic	STRING	kline	Topic name
params	JSON Object		Request expanded parameters
params.realtimeInterval	STRING	24h	Time period
params.klineType	STRING	1m	Kline Type
params.binary	BOOLEAN	false	Whether it is a binary type
data	JSON Array		Return data
data.t	INT64	1688199660000	Timestamp in Milliseconds
data.s	STRING	BTCUSDT	Currency pair ID
data.sn	STRING	BTCUSDT	Currency pair name
data.c	STRING	10002	Close price
data.h	STRING	10002	High price
data.l	STRING	10002	Low price
data.o	STRING	10002	Open price
data.v	STRING	0	Base Asset Volume
f	BOOLEAN	true	Whether it is the first return value
sendTime	INT64	1688199705619	Timetamp in Milliseconds
id	STRING	1	Message ID

Response Example:

{
  "symbol": "BTCUSDT",
  "symbolName": "BTCUSDT",
  "topic": "kline",
  "params": {
    "realtimeInterval": "24h",
    "klineType": "1m",
    "binary": "false"
  },
  "data": [
    {
      "t": 1688199660000,          // Event Time
      "s": "BTCUSDT",              // Symbol
      "sn": "BTCUSDT",             // Symbol Name
      "c": "10002",                // Close Price
      "h": "10002",                // High Price
      "l": "10002",                // Low Price
      "o": "10002",                // Open Price
      "v": "0"                     // Base Asset Volume
    }
  ],
  "f": true,                       // Is it the first return
  "sendTime": 1688199705619,
  "shared": false,
  "id": "1"
}

Realtimes

Update frequency: 500ms

Subscription request parameters

PARAMETER	TYPE	Req'd	Example values	DESCRIPTION
symbol	STRING	Y	BTCUSDT	Currency pair
topic	STRING	Y	realtimes	Topic name, default: "realtimes"
event	STRING	Y	sub	Event Type
params	Array	Y	"binary": false ""	Parameter

Request Example:

sub = {
        "symbol": "BTCUSDT",
         "topic": "realtimes",
         "event": "sub",
         "params": {
             "binary": False
         },
         "id": 1
}

Response content

PARAMETER	TYPE	Example values	DESCRIPTION
symbol	STRING	BTCUSDT	Currency pair ID
symbolName	STRING	BTCUSDT	Currency pair name
topic	STRING	realtimes	Topic name
params	JSON Object		Request expanded parameter
params.realtimeInterval	STRING	24h	Time period
params.binary	BOOLEAN	false	Whether it is a binary type
params.dumpScale	INT64	10	Number of layers in either of order book sides
data	JSON Array		Return data
data.t	INT64	1688199300011	Timestamp in Milliseconds
data.s	STRING	BTCUSDT	Currency pair ID
data.sn	STRING	BTCUSDT	Currency pair name
data.c	STRING	10002	Close price
data.h	STRING	10002	High price
data.l	STRING	10002	Low price
data.o	STRING	10002	Open price
data.v	STRING	0	Volume (in base currency)
data.qv	STRING	0	Volume(in quote currency)
data.m	STRING	0	24H range
data.e	INT64	301	Exchange ID
f	BOOLEAN	true	Whether it is the first return value
sendTime	INT64	false	Whether to share
id	STRING	1	Message ID

Response Example:

{
  "symbol": "BTCUSDT",
  "symbolName": "BTCUSDT",
  "topic": "realtimes",
  "params": {
    "realtimeInterval": "24h",
    "binary": "false"
  },
  "data": [
    {
      "t": 1688199300011,      // Event Time
      "s": "BTCUSDT",          // Symbol
      "sn": "BTCUSDT",         // Symbol Name
      "c": "10002",            // Close Price
      "h": "10002",            // High Price
      "l": "10002",            // Low Price
      "o": "10002",            // Open Price
      "v": "0",                // Total traded base asset volume
      "qv": "0",               // Total traded quote asset volume
      "m": "0",                // 24H Range
      "e": 301                 // Trade Id
    }
  ],
  "f": true,
  "sendTime": 1688199337756,
  "shared": false,
  "id": "1"
}

Trade

Upon successful subscription to our WebSocket API, you will receive an update of the most recent 60 trades for the symbol pair subscribed.

Update frequency: 300ms

Subscription request parameters

PARAMETER	TYPE	Req'd	Example values	DESCRIPTION
symbol	STRING	Y	BTCUSDT	Currency pair
topic	STRING	Y	trade	Topic name, default: "trade"
event	STRING	Y	sub	Event type
params	STRING	Y	"binary": False	Parameter

Request Example:

sub = {
        "symbol": "BTCUSDT",
         "topic": "trade",
         "event": "sub",
         "params": {
             "binary": False
         },
         "id": 1
}

Response content

PARAMETER	TYPE	Example values	DESCRIPTION
symbol	STRING	BTCUSDT	Currency pair ID
symbol	STRING	BTCUSDT	Currency pair name
topic	STRING	trade	Topic name
params	JSON Object		Request expanded parameters
params.realtimeInterval	STRING	24h	Time period
params.binary	BOOLEAN	false	Whether it is a binary type
data	JSON Array		Return data
data.v	STRING	1447335405363150849	Transaction record ID
data.t	STRING	1687271825415	Timestamp corresponding to transaction time in milliseconds
data.p	STRING	10001	Traded price
data.q	STRING	0.001	Traded quantity
data.m	STRING	false	isMaker true: maker false: taker
f	BOOLEAN	true	Whether it is the first return value
sendTime	INT64	1688198964293	Timestamp in milliseconds
shared	BOOLEAN	false	Whether to share
id	STRING	1	Message ID

Response Example:

{
  "symbol": "BTCUSDT",
  "symbolName": "BTCUSDT",
  "topic": "trade",
  "params": {
    "realtimeInterval": "24h",
    "binary": "false"
  },
  "data": [
    {
      "v": "1447335405363150849",   // Transaction ID
      "t": 1687271825415,           // Time
      "p": "10001",                 // Price
      "q": "0.001",                 // Quantity
      "m": false                    // true = buy, false = sell
    },
    {
      "v": "1447337171483901952",
      "t": 1687272035953,
      "p": "10001.1",
      "q": "0.001",
      "m": true
    },
    {
      "v": "1447337410752167937",
      "t": 1687272064476,
      "p": "10003",
      "q": "0.001",
      "m": false
    },
    {
      "v": "1452060966291521544",
      "t": 1687835156176,
      "p": "10002",
      "q": "0.001",
      "m": false
    }
  ],
  "f": true,
  "sendTime": 1688198964293,
  "shared": false,
  "id": "1"
}

Depth

Request the depth of the orderbook, can request up to limit of 100

Update frequency: 300ms

Request Example:

Subscription request parameters

PARAMETER	TYPE	Req'd	Example values	DESCRIPTION
symbol	STRING	Y	BTCUSDT	Currency pair
topic	STRING	Y	depth	Topic name, default: "depth"
event	STRING	Y	sub	Event type
params	STRING	Y	"binary": False	Parameter

sub = {
        "symbol": "BTCUSDT",
         "topic": "depth",
         "event": "sub",
         "params": {
             "binary": False
         },
         "id": 1
}

Response content

PARAMETER	TYPE	Example values	DESCRIPTION
symbol	STRING	BTCUSDT	Currency pair ID
symbol	STRING	BTCUSDT	Currency pair name
topic	STRING	depth	Topic name
params	JSON Object		Request expanded parameters
params.realtimeInterval	STRING	24h	Time period
params.binary	BOOLEAN	false	Whether it is a binary type
data	JSON Array		Return data
data.e	INT64	301	Latest transaction record ID
data.s	STRING	BTUSDT	Currency pair
data.t	INT64	1688199202314	Timestamp in milliseconds
data.v	STRING	6881_18	Base asset volume
data.a	JSON Array	[ "10004", "0.001" ]	Ask price and quantity
data.b	JSON Array	[ "10004", "0.001" ]	Bid price and quantity
f	BOOLEAN	true	Whether it is the first return value
sendTime	INT64	1688199482822	Timestamp in milliseconds
shared	BOOLEAN	false	Whether to share
id	STRING	1	Message id

Response Example:

{
  "symbol": "BTCUSDT",
  "symbolName": "BTCUSDT",
  "topic": "depth",
  "params": {
    "realtimeInterval": "24h",
    "binary": "false"
  },
  "data": [
    {
      "e": 301,
      "s": "BTCUSDT",               // Symbol
      "t": 1688199202314,           // Time
      "v": "6881_18",               // Base Asset Volume
      "b": [],                      // Bids
      "a": [
        [
          "10004",                  // Price
          "0.001"                   // Quantity
        ],
        [
          "18000",
          "0.05"
        ],
        [
          "27000",
          "0.01"
        ],
        [
          "28000",
          "0.09"
        ]
      ],
      "o": 0
    }
  ],
  "f": true,                       // Is it the first return
  "sendTime": 1688199482822,
  "shared": false,
  "id": "1"
}

Private Stream

A User Data Stream listenKey is valid for 60 minutes after creation.
Doing a PUT on a listenKey will extend its validity for 60 minutes.
Doing a DELETE on a listenKey will close the stream and invalidate the listenKey .
Doing a POST on an account with an active listenKey will return the currently active listenKeyand extend its validity for 60 minutes.
User feeds are accessible via /api/v1/ws/ (e.g. wss://#HOST/api/v1/ws/)
User feed payloads are not guaranteed to be up during busy times; make sure to order updates with E

For example in Postman, you may test our websocket with listenkey

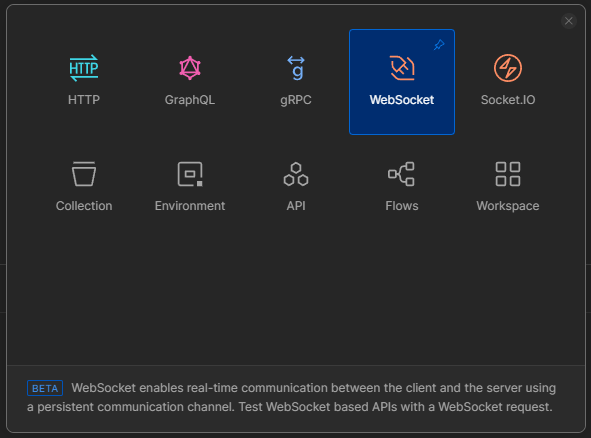

Create a new request and select Websocket

Input wss://stream.sim.obibiz.com/api/v1/ws/{listenkey} and click "Connect"

Payload: Account Update

Update frequency: Realtime

Subscription request parameters
No

Subscription Request Example
No

Subscription return parameter

Whenever the account balance changes, an event outboundAccountInfo is sent containing the assets that may have been moved by the event that generated the balance change.

[
  {
    "e": "outboundAccountInfo",   // Event type
																	// outboundAccountInfo // Trading Account
    															// outboundCustodyAccountInfo // Custody Account (To be released soon)
    															// outboundFiatAccountInfo // Fiat Account (To be released soon)
    "E": 1499405658849,           // Event time
    "T": true,                    // Can trade
    "W": true,                    // Can withdraw
    "D": true,                    // Can deposit
    "B": [                        // Balances changed
      {
        "a": "LTC",               // Asset
        "f": "17366.18538083",    // Free amount
        "l": "0.00000000"         // Locked amount
      }
    ]
  }
]

Payload: Order Update

Update frequency: Realtime

Subscription request parameters
No

Subscription Request Example
No

Subscription return parameter

Order updates are updated through the executionReport event. Check out the API docs and the relevant enum definitions below. The average price can be found by dividing Z by z.

Execution Type

NEW
PARTIALLY_FILLED
FILLED
PARTIALLY_CANCELED
CANCELED
REJECTED

[
  {
    "e": "executionReport",        // Event type
    "E": 1499405658658,            // Event time
    "s": "ETHBTC",                 // Symbol
    "c": 1000087761,               // Client order ID
    "S": "BUY",                    // Side
    "o": "LIMIT",                  // Order type
    "f": "GTC",                    // Time in force
    "q": "1.00000000",             // Order quantity
    "p": "0.10264410",             // Order price
"reqAmt": "1000",	                 // Requested cash amount (To be released)
    "X": "NEW",                    // Current order status
    "d": "1234567890123456789"     // Execution ID
    "i": 4293153,                  // Order ID
    "l": "0.00000000",             // Last executed quantity
    "r": "0"                       // unfilled quantity
    "z": "0.00000000",             // Cumulative filled quantity
    "L": "0.00000000",             // Last executed price
    "V": "26105.5"                 // average executed price
    "n": "0",                      // Commission amount
    "N": null,                     // Commission asset
    "u": true,                     // Is the trade normal, ignore for now
    "w": true,                     // Is the order working? Stops will have
    "m": false,                    // Is this trade the maker side?
    "O": 1499405658657,            // Order creation time
    "Z": "0.00000000",             // Cumulative quote asset transacted quantity
    "x": "USER_CANCEL"             // Order cancel reject reason
  }
]

Payload: Ticket push

Update frequency: Realtime

Subscription request parameters
No

Subscription Request Example
No

Subscription return parameter

[
    {
        "e": "ticketInfo",                // event type
        "E": "1668693440976",             // event time (latest order info update time when the message is created)
        "s": "BTCUSDT",                   // symbol
        "q": "0.205",                     // quantity
        "t": "1668693440899",             // order matching time
        "p": "441.0",                     // price
        "T": "1291488620385157122",       // ticketId
        "o": "1291488620167835136",       // orderId
        "c": "1668693440093",             // clientOrderId
        "O": "1291354087841869312",       // matchOrderId
        "a": "1286424214388204801",       // accountId
        "A": 0,                           // ignore
        "m": false,                       // isMaker
        "S": "SELL"                       // side  SELL or BUY
    }
]
